TM 1-1520-238-23
4-450
Change 4
4.141.

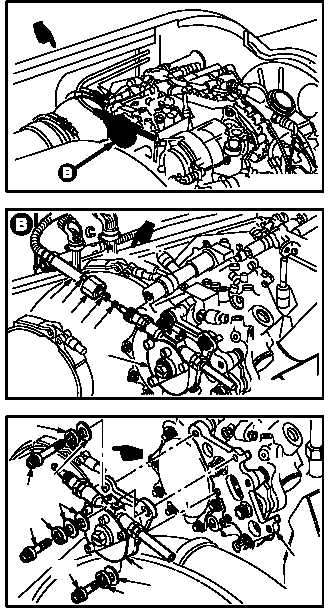

NO. 2 ENGINE POWER AVAILABLE SPINDLE GEARBOX REMOVAL/INSTALLATION – continued
4.141.4. Removal
a. Remove cable (2) from power available
spindle gearbox (3).
(1) Hold cable flats (4). Remove coupling nut (5).
(2) Remove cable fitting (6) from gearbox fitting
(7).
b. Remove gearbox (3) from baseplate (8).
(1) Remove bolt (9), two flat washers (10), and
countersunk washer (11).
(2) Remove bolts (12) and (13), two flat washers
(14), and two countersunk washers (15).
(3) Remove gearbox (3).
4.141.5. Cleaning
a. Clean baseplate (para 1.47).
4.141.6. Inspection
a. Check cable for cracked, bent, or loose fitting.
None allowed.
b. Check cable for binding. None allowed.
c. Check baseplate for nicks and scratches.
Maximum depth not to exceed 0.015 INCH.
d. Check splines for visible nicks and wear. None
allowed.
e. Check cable fitting and exposed baseplate for
corrosion (para 1.49).
GO TO NEXT PAGE
M04-1177-1A
45
67
3
M04-1177-2A
2
8
9
11
15
12
13
M04-1177-3A
3
15
10
14
14
